These instructions will show you, step by step, on how to clean your air filter. A clean air filter will allow a constant clean flow of fresh air to flow freely into your engine, boosting engine performance. It will also prolong the life of your engine by reducing the risk of dirt and dust from getting into your engine.

The first step is to remove the air filter from your engine.



Next, remove the foam filter element from the rubber base.



Rinse the foam filter element, from the inside face, with nitro fuel to remove all the dirt and dust. Make sure you do this in a well ventilated area.



Below is what the clean foam filter element should look like.

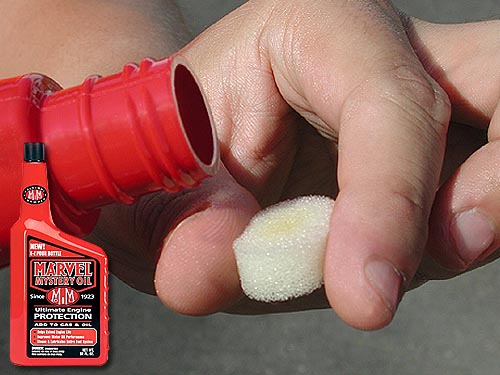

Apply air filter oil to moisten the foam filter element. You can purchase air filter oil at your local hobby shop or use Marvel's Mystery Oil (available at most hardware stores). Apply an even amount of oil over the foam filter element. Use your fingers and squeeze the foam filter element to ensure that the oil is absorbed throughout the foam filter element.



Below is what the foam filter element should look like after you apply the filter oil



Reinstall the foam filter element into the rubber base, make sure there are no gaps between the two elements. You do not want to leave any gaps for dirt or dust to seep through.



Above is a properly fitted foam filter element, with a tight fit all the way around.
Below is an improperly fitted foam filter element with a gap that would let dust and dirt seep in.



Reattach the air filter onto the engine. Ensure the air filter fits snugly onto the carb.





The following are step by step instructions to clean a Motor Saver air filter or our #72175 High Performance Air Filter (10mm).

The first step is to remove the air filter from your engine.



Next, remove the mesh cap from the air filter and remove the foam filter element.



Rinse the foam filter element, from the side with the hole, with nitro fuel to remove all the dirt and dust. Make sure you do this in a well ventilated area.



Apply air filter oil to moisten the foam filter element. You can purchase air filter oil at your local hobby shop or use Marvel's Mystery Oil (available at most hardware stores). Apply an even amount of oil over the foam filter element. Use your fingers and squeeze the foam filter element to ensure that the oil is absorbed throughout the foam filter element.



Reinstall the foam filter element into the rubber base. The end with the hole faces down.



Replace the mesh cap back onto the air filter.



Reattach the air filter onto the engine. Ensure the air filter fits snugly onto the carb. You can use a small zip tie around the base of the air filter, make sure you do not overtighten the zip tie and distort the rubber filter elements.
